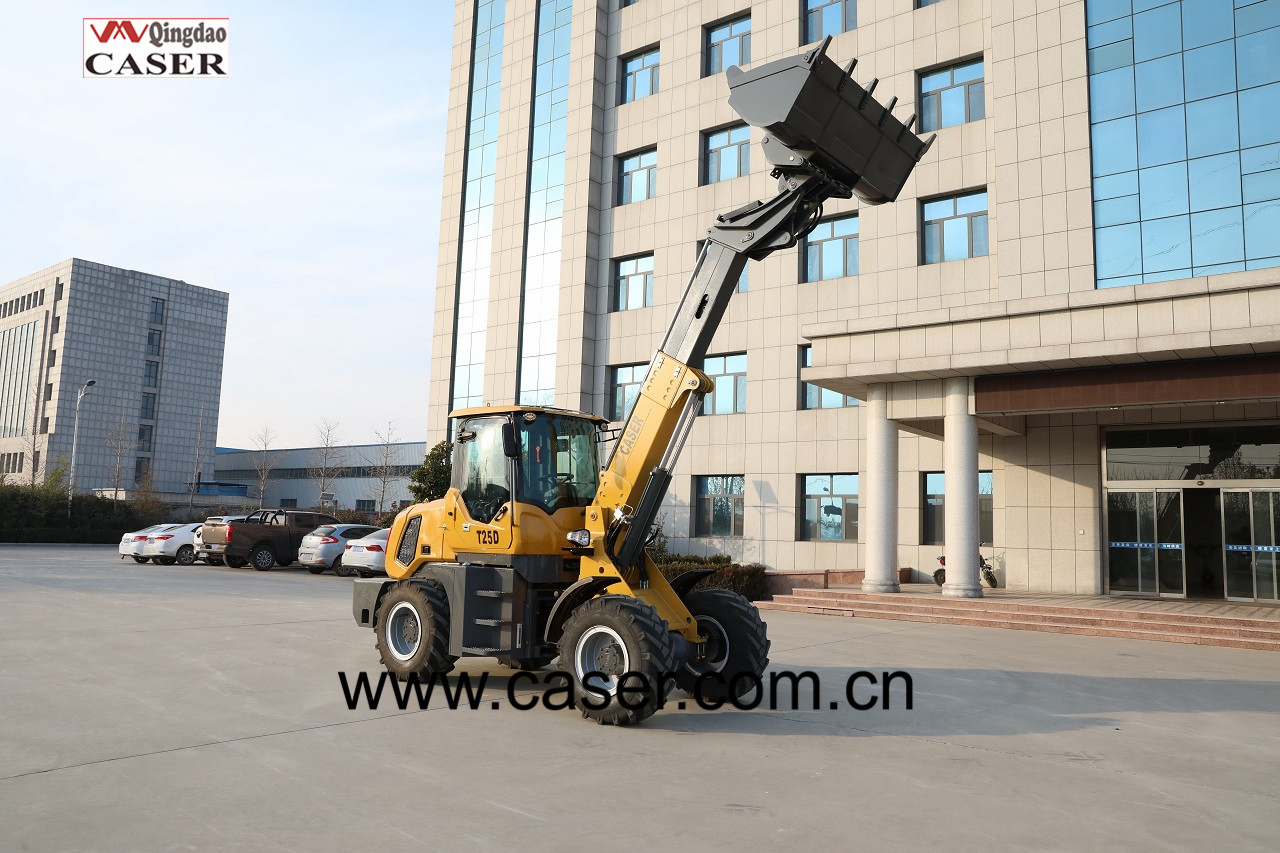

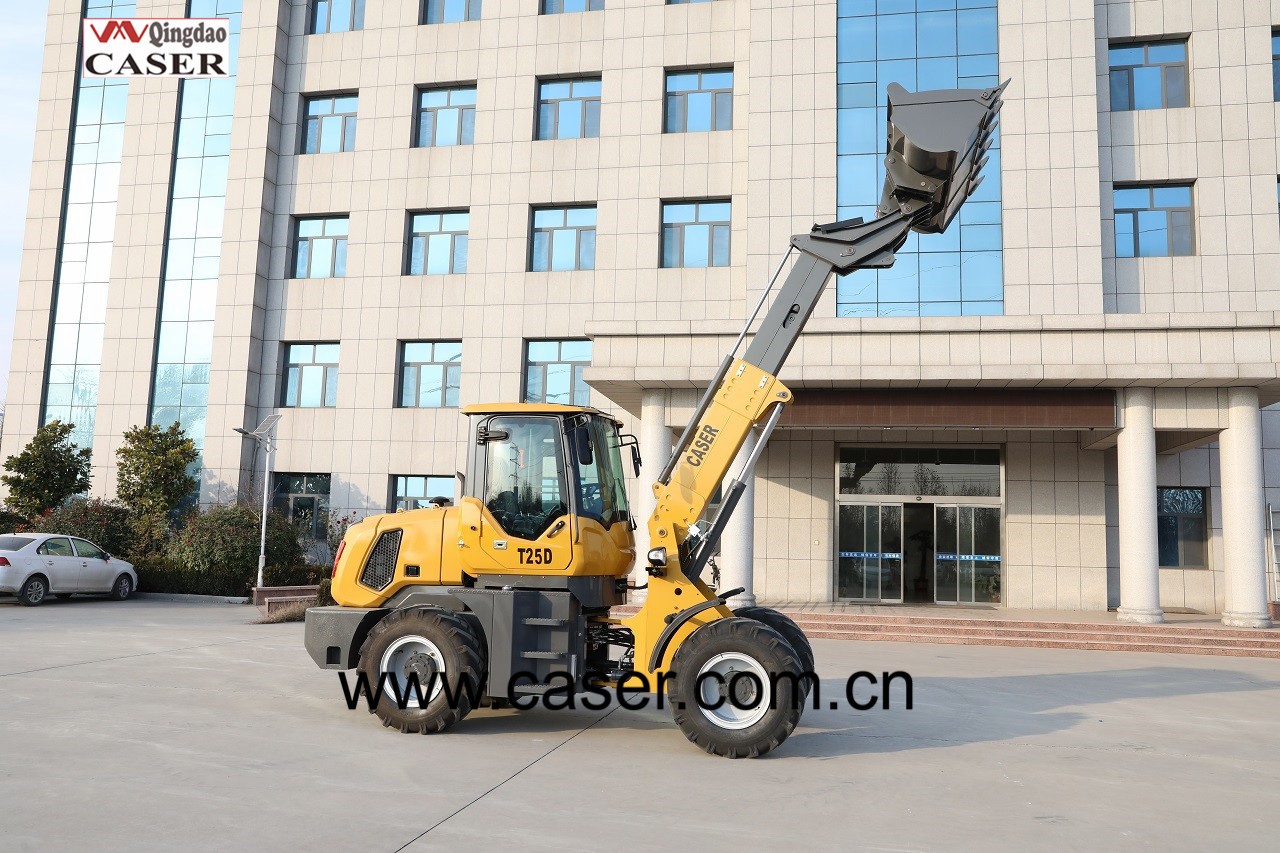

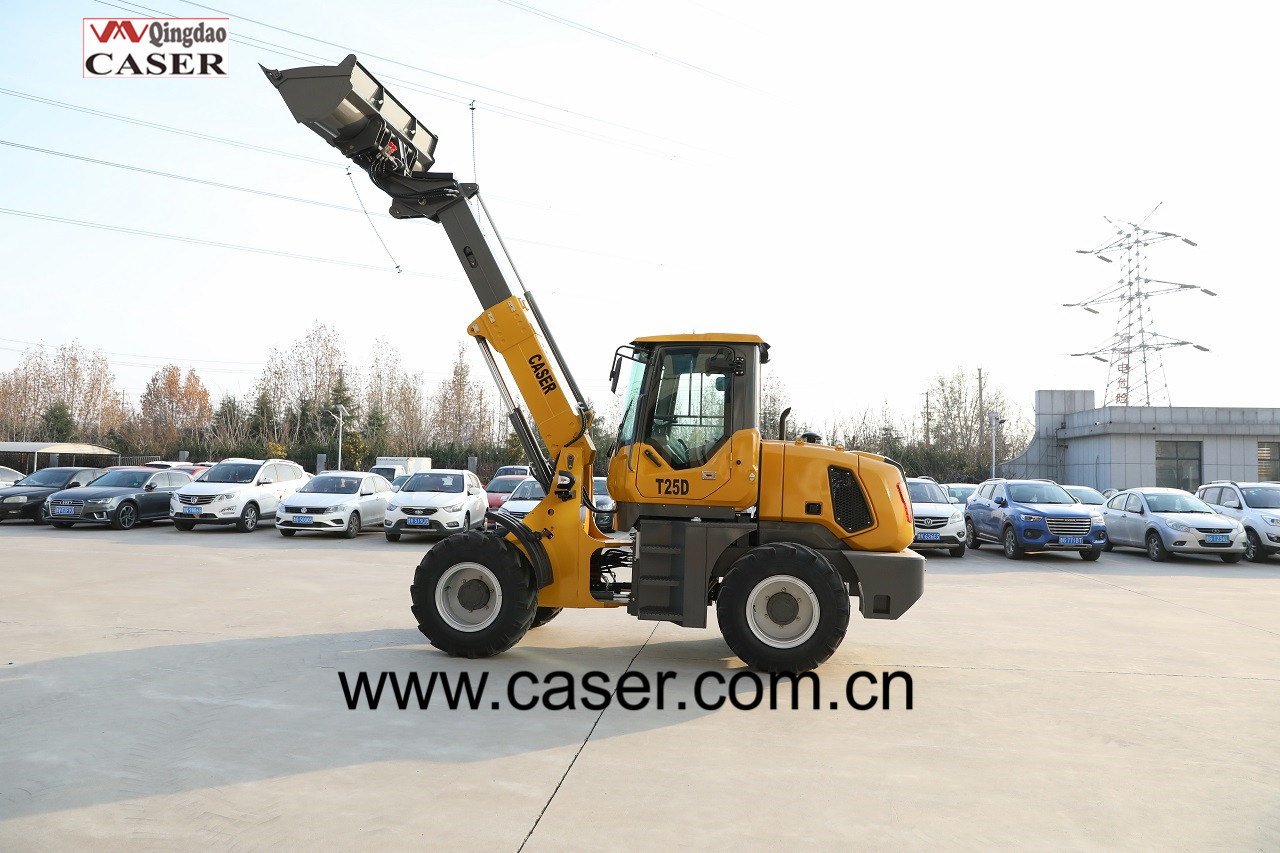

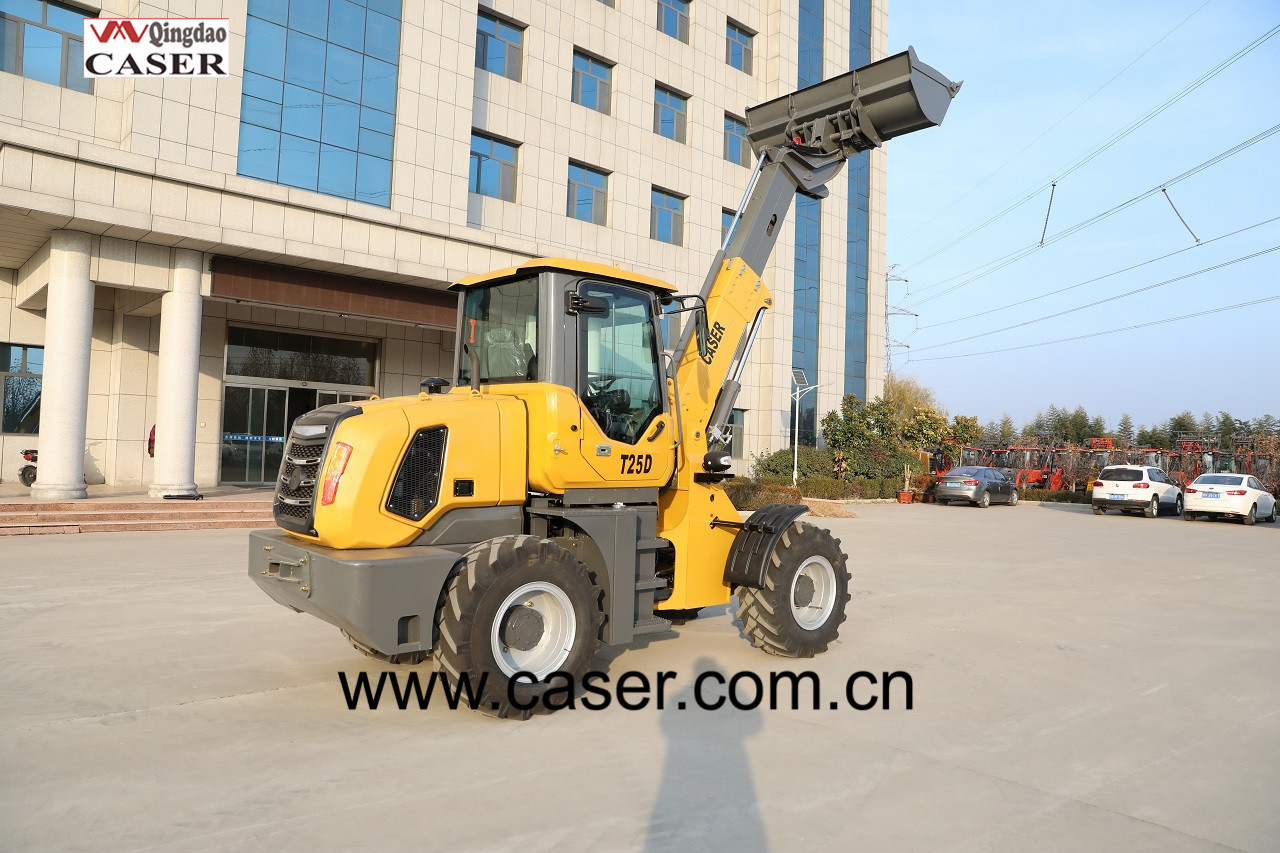

Telescopic Loader CASER T25D

2.5 Ton Telescopic Loader

Telescopic Loader CASER T25D

Features:

1. Articulated Frames, makes the loader a stronger and a better working machine
2. Fully hydraulic power shift Transmission, and Torque Convertor, makes the loader easy to operate.

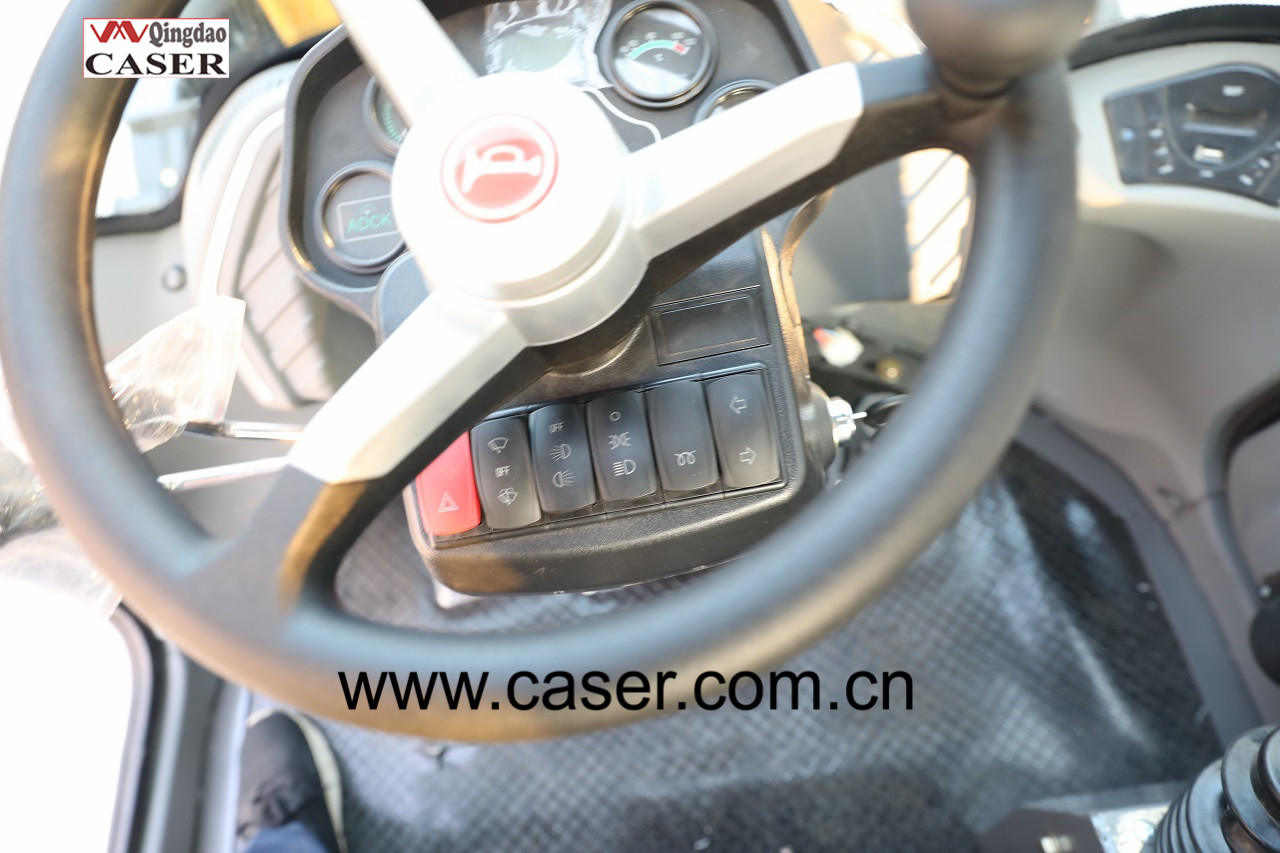

3. New Cabin design.
4. Axle with Disk brakes, and Differential Gear Function
5. Joystick Control, makes the loading system easier to operate.
6. 4 X 4 Wheel Drive
7. LED Lights, much brighter and much longer life time, than the regular halogen lights.
8. Quality Hydraulic pump, valves, and oil hoses, makes the owner not warrying about the hydraulic system.
9. Backup Camera, is a good safety feature to have.
10. Different Engine Options can choose from (Standard YN 65KW, or Xinchai Euro5, or Kohler / Cummins EPA engine.

Overall Dimensions
Rated Load
2500kg
Overall Weight
5500kg
Bucket capacity
0.67cbm
Bucket width
1890mm
L x W x H
5750*1890*2750mm
Dumping Height:
3100-3850mm


Max Tractive Force
36 kn
Wheelbase
2005mm
Track Base
1480mm
Standard Engine
Make & Model:
Yunnei 65kw
Engine type:
Water-cooled, 4 Cylinder Turbo Diesel Engine
Rated Power:
65Kw  @2400rpm
Engine
Option #1
Make & Model:
Cummins QSF2.8
Engine type:
4 Cylinder Turbo Diesel 2.8LEngine
Rated Power:
55kw(75HP)
Transmission system
Type:
Full Hydraulic Power Shift
Gear Numbers:
2 Forward; 2 Reverse
Transmission Oil Pressure:
1.2 ~1.5MPa
Rated input speed:
2500 (rpm)
Operating Specifications
Drive Means:
4-wheel drive
Steering System
Articulated Frame with hydraulic power steering
Min Turning Radius:
4500mm
Time of raise:
4.8sec.
Hydraulic cycle time:
9.5Second.
Brake System
Service Brake:
Air assisted Hydraulic Disk Brakes
Parking Brake:
Hand operated
Tire Size
16/70-20
